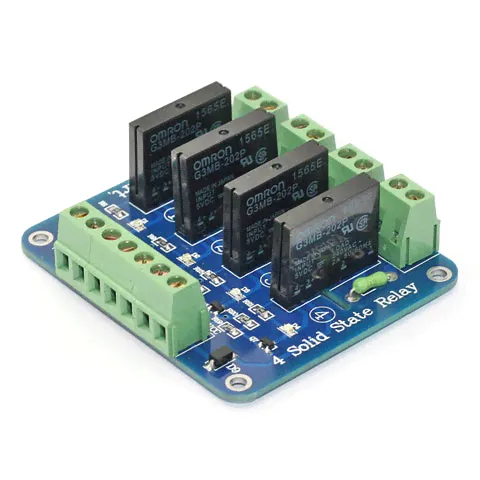

2/8-Channel 5V Solid State Relay в Клине
Видео
Описание
SPECIFICATION
1. 2CH OMRON 5V solid state relays every road 240V 2A, output with resistive fuse 240V 2A.
- Size:62*42mm*24mm
- Power supply: 5V DC(160mA)
Input control signal voltage:
- (0-0.5V low stage SSR is OFF)
- (2.5-20V high stage SSR is ON)
SSR Output (each channel):
- Load voltage range: 75 to 264VAC (50/60Hz).
- Load current: 0.1 to 2 AMP.
Power supply:
- 5VDC / 160mA (all channel ON).
Input control signal voltage:
- 0V - 0.5V Low stage (SSR is OFF),
- 0.5V - 2.5V (unknown state).
- 2.5V - 20V High state (SSR is ON).
SSR Spec:
- Manufacturer: OMRON
- Part number: G3MB-202P, 5V version.
- Isolation: Phototriac.
- Zero cross: Yes.
- Rated output load: 2A at 100 to 240VAC.(50/60Hz).
- Load type: General purpose.
- Datasheet: Download Link
- Raspberry Pi
Reference:
- Size:71*62mm*24mm
- Power supply: 5V DC(160mA)
Input control signal voltage:
- (0-0.5V low stage SSR is OFF)
- (2.5-20V high stage SSR is ON)
SSR Output (each channel):
- Loa
